If you are new to the world of pipes used in oil and gas, you might have heard about API 5L pipe. This guide will explain everything in simple terms. We will cover what it is, how it is made, and where it is used. By the end, you will have a clear idea of why this type of pipe matters in many industries.
Introduction to API 5L Pipe

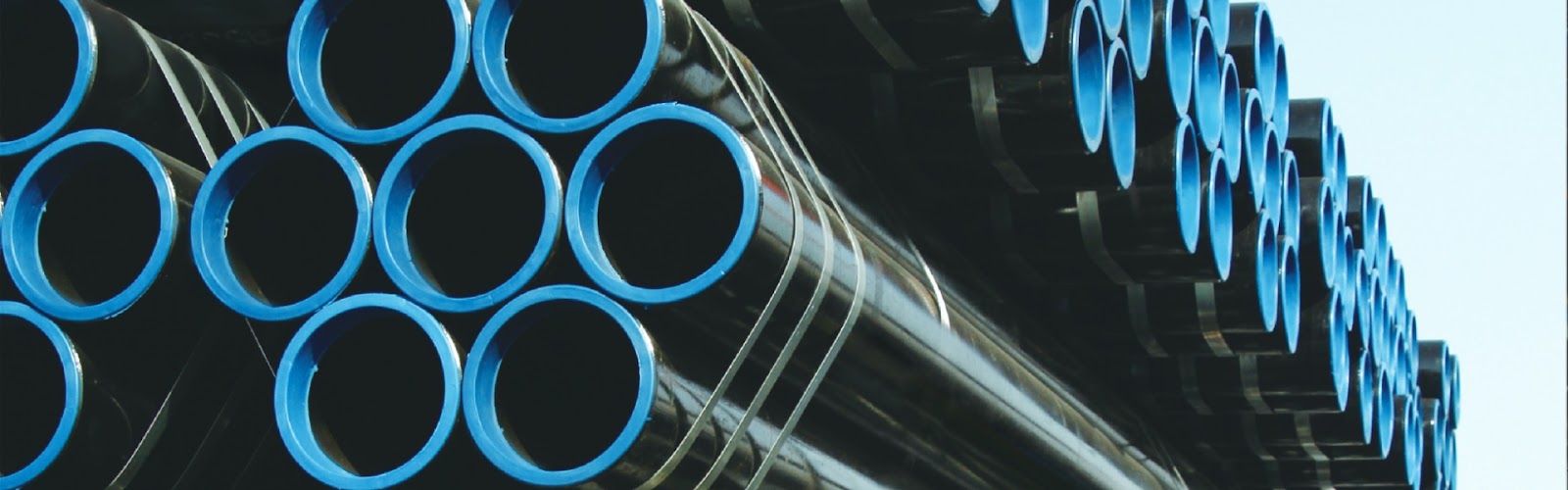

API 5L pipe is a type of steel pipe designed for transporting oil, gas, and water. It follows standards set by the American Petroleum Institute, or API. These standards ensure the pipe is safe and reliable for long-distance transport.
The term “line pipe” refers to pipes that carry fluids over long distances, like from a well to a refinery. API 5L pipe fits this role perfectly because it can handle high pressure and tough conditions. It comes in different sizes and strengths to meet various needs.
People use API 5L pipe in pipelines that cross countries or even oceans. It is built to last and resist damage from the environment. If you work in construction or energy, knowing about this pipe can help you make better choices.
The API sets rules for making these pipes. This includes tests for strength, chemical makeup, and how well they hold up under stress. Without these standards, pipes might fail and cause problems like leaks.
In short, API 5L pipe is the go-to choice for safe transport of resources. It keeps things running smoothly in key sectors.
What Does API 5L Mean?
API stands for American Petroleum Institute. It is a group that creates guidelines for the oil and gas industry. The “5L” part refers to the specific standard for line pipe.
This standard covers how the pipe is made, what materials are used, and how it is tested. It ensures every pipe meets the same quality level, no matter who makes it.
The standard has two main levels: PSL1 and PSL2. PSL1 is the basic level with standard requirements. PSL2 has stricter rules, like better chemical controls and more tests. You choose based on the project’s needs.
API 5L also specifies the pipe’s dimensions, like diameter and wall thickness. These details make sure the pipe fits with other equipment.
Overall, API 5L means a promise of quality. It helps buyers know they are getting a product that works well.
Types of API 5L Pipe
There are two main types of API 5L pipe: seamless and welded.
Seamless pipes are made from a solid piece of steel. They have no joints, which makes them strong. Workers heat the steel and shape it into a tube. This type is good for high-pressure jobs.
Welded pipes are made by joining steel plates or coils. There are subtypes like ERW, which uses electric resistance welding, and SAW, which uses submerged arc welding. Welded pipes are cheaper and come in larger sizes.
Each type has its place. Seamless is better for small diameters and extreme conditions. Welded works well for big projects where cost matters.
You can also find pipes with coatings to protect against rust. These coatings add extra life to the pipe in wet or harsh areas.
Knowing the types helps you pick the right one for your task.
Grades and Specifications
API 5L pipes come in different grades, like A, B, X42, X52, up to X80. The letter “X” shows the strength level. Higher numbers mean stronger pipes.
For example, grade B is common for general use. X60 or higher is for tougher jobs with more pressure.
Specifications include chemical composition. Steel must have the right mix of carbon, manganese, and other elements. This affects how the pipe performs.
The standard also covers mechanical properties, like yield strength and tensile strength. Yield strength is the point where the pipe starts to bend permanently. Tensile strength is how much pull it can take before breaking.
Tests are required, such as hydrostatic testing, where water pressure checks for leaks. Non-destructive tests like ultrasound look for flaws inside the metal.
All these details ensure the pipe is safe and meets industry needs.
Manufacturing Process
Making API 5L pipe starts with raw materials. Steel billets or coils are used, depending on the type.
For seamless pipes, the billet is heated to a high temperature. Then, it is pierced to make a hollow tube. Next, it is stretched and shaped to the right size. Finally, it cools and gets cut to length.
For welded pipes, steel plates are formed into a cylinder. The edges are welded together. Heat treatment follows to make the weld strong.
After forming, pipes go through inspections. They check dimensions, surface quality, and internal structure.
Coatings are applied if needed. This can be epoxy or polyethylene to fight corrosion.
The process ends with marking the pipe with details like grade and size. This helps during installation.
Manufacturers follow API rules step by step to produce reliable products.
Applications of API 5L Pipe
API 5L pipe is used mainly in the oil and gas industry. It transports crude oil from wells to processing plants.
It also carries natural gas to homes and businesses. Pipelines made from this pipe can run for thousands of miles.
In water transport, it moves water in large systems. Some use it for slurry, which is a mix of water and solids.
Offshore platforms use it for underwater lines. It handles salt water and waves.
In construction, it supports structures or carries fluids in buildings.
Its strength makes it ideal for harsh environments, like cold areas or deserts.
Many countries rely on these pipes for energy supply. Without them, moving resources would be harder and cost more.
Advantages of Using API 5L Pipe
One big advantage is durability. These pipes last long, even in tough conditions.
They resist corrosion, which saves money on repairs.
The standard ensures consistency. You know what you get every time.
It is cost-effective. Welded types are affordable for large projects.
Safety is another plus. Strict tests reduce the risk of failures.
They are versatile. Different grades fit various needs.
Environmentally, they help by preventing leaks that could harm nature.
Overall, using API 5L pipe leads to reliable and efficient systems.
How to Choose the Right API 5L Pipe
Start by knowing your project’s needs. What fluid will it carry? Oil, gas, or water?
Consider pressure and temperature. Higher levels need stronger grades.
Think about the environment. Will it be underground, underwater, or exposed?
Check the size required. Diameter and thickness matter for flow.
Look at the type: seamless for high strength, welded for cost savings.
The budget is important. Balance quality with what you can spend.
Consult experts or suppliers. Sites like uniasen.com offer details on options.
Read the specs carefully. Make sure it meets API standards.
Finally, check certifications. This confirms the pipe is genuine.
Choosing right prevents problems later.
Conclusion
We have covered the basics of API 5L pipe. From what it means to how it is made and used, this guide gives you a full picture.
Remember, it is key to safe transport in the energy sectors. With the right choice, you get reliability and value.
If you need more info, look into suppliers who follow these standards. Stay informed to make smart decisions in your work.
